Advanced Warehouse Management: Preventing Spoilage in Bulk Grain Silos

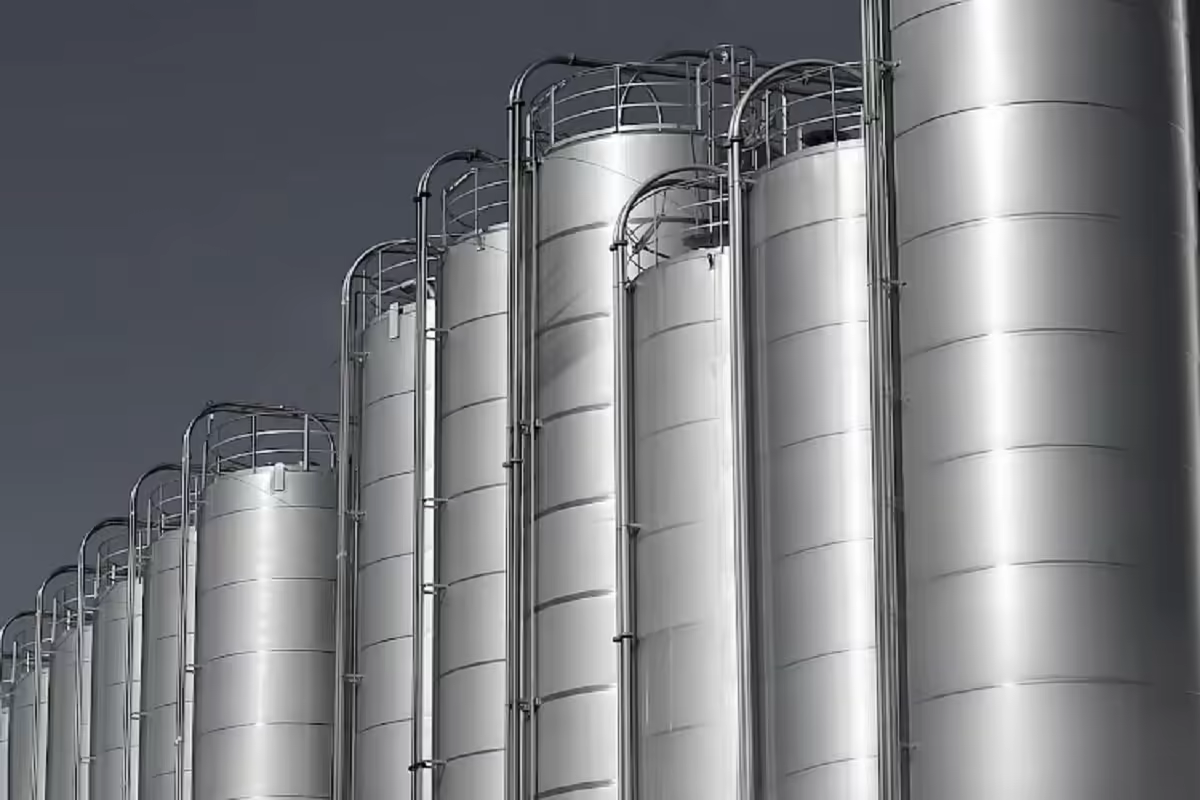

Managing large bulk grain inventories requires a deep understanding of post-harvest biological activity. When thousands of metric tons of rice, wheat, corn, or millets are consolidated into bulk steel or concrete silos, they do not turn into inert matter. They form a dynamic, living biological ecosystem sensitive to thermal gradients, vapor pressure shifts, and microbial activity. Without precise, data-driven warehouse controls, hidden hot spots can form deep within grain piles, triggering compounding degradation before cargo ever boards an ocean vessel at an export terminal.
Modern grain storage management has evolved far beyond passive warehouse storage. At STOXXNOW, our logistics operations combine structural physics with real-time digital sensing. Preventing post-harvest loss requires constant vigilance starting at intake, followed by continuous climate management during extended storage cycles.
Understanding Moisture Migration Dynamics
The single greatest cause of post-harvest loss in grain storage is moisture migration. A common misconception among facility managers is that loading grain at an overall average "safe" moisture content—such as 13% for wheat or corn—guarantees long-term stability. In reality, static grain masses interact constantly with external environmental conditions through thermal transfer across silo walls.
Because grain is an excellent thermal insulator, a large bulk pile changes temperature very slowly. During seasonal shifts, a sharp thermal boundary develops between the central core of the grain pile and the outer walls of the structure. This differential drives internal convection currents:
- Cool Season Thermal Shift: As autumn and winter temperatures arrive, the exterior walls of steel or concrete silos cool down rapidly, while the deep core of the grain mass retains summer heat. Air near the outer walls cools, increases in density, and settles downward. Simultaneously, warm, buoyant air within the central mass rises toward the peak of the silo headspace. As this warm, humid air contacts the cold metal roof plates, water vapor condenses out of the air stream and drips back onto the top surface of the grain pile.
- Warm Season Thermal Reverse: Conversely, during spring and summer, outer walls heat up, reversing internal air currents. Warm air travels down the outer perimeter and rises through the cooler center, transporting moisture into localized interior zones.
- Localized Hotspot Amplification: Moistened grain surfaces accelerate seed metabolic respiration. Respiration generates thermal energy, carbon dioxide, and metabolic water as byproduct reactions. This localized heat and water creation creates an escalating feedback loop, fueling rapid fungal development (such as Aspergillus and Penicillium species) and insect proliferation.
Relative Respiration Rate vs. Grain Temperature and Moisture Content
Automated Aeration and Psychrometric Controls
Breaking moisture migration patterns requires mechanical ventilation tailored to ambient atmospheric psychrometrics. Passive air vents alone cannot manage thousands of metric tons of bulk grain. Modern silo operations utilize forced-air aeration fan systems engineered to deliver airflow rates between 0.1 and 0.2 cubic meters of air per minute per metric ton (m³/min/t) for cooling, and up to 1.0 m³/min/t for in-bin drying programs.
However, running fans continuously can introduce unexpected operational hazards. If humid outdoor air is forced through dry grain, the bulk grain will absorb ambient moisture until it reaches equilibrium, elevating the risk of localized decay. To prevent this, STOXXNOW implements automated Equilibrium Moisture Content (EMC) controls based on real-time psychrometric monitoring.
| Commodity Type | Max Safe Moisture (%) | Target Storage Temp (°C) | Critical EMC Limit (%) | Max Storage Duration |
|---|---|---|---|---|
| Hard Red Winter Wheat | 12.5% - 13.0% | 12°C - 15°C | 65% RH | 18 - 36 Months |
| Yellow Corn (Maize) | 13.0% - 13.5% | 10°C - 14°C | 68% RH | 12 - 24 Months |
| Long Grain Husked Rice | 12.0% - 12.5% | 12°C - 16°C | 60% RH | 12 - 18 Months |
| Soybeans | 11.0% - 12.0% | 10°C - 13°C | 65% RH | 12 - 24 Months |
Operational Rule: Aeration fans should operate only when the calculated Equilibrium Moisture Content (EMC) of the incoming ambient air aligns with or is lower than the target moisture content of the stored commodity. Running fans when ambient Relative Humidity (RH) exceeds 75% risks adding moisture directly into the bottom floor layers.
IoT Sensor Networks and Deep-Pile Sensing Cables
Digital sensing has modernized traditional warehouse quality control. Legacy operations relied on manual sampling probes, which were labor-intensive and struggled to inspect deep zones within 30-meter high silos. Modern high-capacity facilities rely on integrated IoT sensor arrays.
1. Multipoint Thermocouple and RTD Cable Arrays
Heavy-duty steel cables with strain-relief core wire are suspended vertically from the silo roof structure down to the discharge hopper floor. Embedded along these cables at intervals of 1.5 to 3 meters are digital temperature sensors (thermocouples or Resistance Temperature Detectors). These sensors continuously monitor the thermal profile throughout the entire cross-section of the grain pile.
Continuous monitoring software tracks temperature trends over time rather than isolated daily readings. A gradual temperature increase of as little as 0.5°C per day over three consecutive days alerts operators to localized biological activity, long before heat diffuses to the surface layer.
2. Carbon Dioxide (CO2) Headspace Analysis
Thermal monitoring relies on heat transfer through grain, which travels slowly. In contrast, carbon dioxide gas produced by seed respiration and fungal activity diffuses quickly through pore spaces in the grain pile. Installing infrared CO2 gas sensors in upper headspace exhaust ports allows operators to detect early micro-biological activity weeks before thermal sensors pick up a localized spike.
Pest Control and Chemical Residue Management
Insect infestations—such as the Granary Weevil (Sitophilus granarius), Lesser Grain Borer (Rhyzopertha dominica), and Red Flour Beetle (Tribolium castaneum)—can turn high-grade grain into low-value animal feed. Beyond direct grain loss, insect activity releases heat and moisture, accelerating overall degradation.
Historically, warehouses relied heavily on chemical liquid insecticide sprays applied directly to grain during conveyance. However, modern import terminals maintain strict residue limits. Achieving pest control while preserving chemical purity requires an Integrated Pest Management (IPM) approach:
- Chilled Air Refrigeration: Passing conditioned cold air (8°C to 12°C) through grain mass drops temperatures below the threshold required for insect reproduction and feeding. At temperatures under 13°C, major storage pests enter dormant states and stop reproducing entirely.
- Inert Gas Fumigation (CO2 & Nitrogen Displacement): In airtight, sealed silos (compliant with DIN EN 13080 standards), injecting carbon dioxide or high-purity nitrogen drops oxygen levels below 1%. Sustaining anoxic conditions for 10 to 14 days destroys all insect life stages—including eggs, larvae, pupae, and adults—without leaving synthetic chemical residues.
- Recirculatory Phosphine Closed-Loop System (J-System): When conventional fumigation is required, closed-loop phosphine gas circulation distributes low concentration gas evenly throughout the pile, avoiding localized chemical over-exposure while achieving complete pest control.
Combating Structural Grain Dust Explosions
Beyond crop preservation, advanced bulk warehouse management requires managing severe industrial safety risks—specifically primary and secondary grain dust explosions. Organic agricultural dusts (wheat, corn, or soy dust) suspended in air inside an enclosed space represent significant explosion hazards when exposed to an ignition source.
Modern silo engineering mitigates dust risks through layered design standards:
- Pneumatic Dust Extraction at Transfer Points: High-velocity suction hoods placed over belt transfer drop-points, elevator legs, and internal tripper cars extract airborne particulates before dust accumulates inside headspace environments.
- Explosion Relief Venting Panels: Silo roofs and elevator leg casings incorporate engineered burst panels that rupture outward at low overpressures (e.g., 0.1 bar), safely venting explosive force away from primary concrete or steel support structures.
- Intrinsic Electrical Isolation: All electrical components, electric motors, and sensor nodes inside grain-handling areas must meet Class II, Division 1 (ATEX Zone 20/21) dust-ignition-proof certifications to eliminate electrical arc hazards.
The STOXXNOW Operational Framework
Preserving export-grade agricultural commodities across multi-month storage windows relies on an integrated approach combining structural design, continuous sensor monitoring, atmospheric controls, and biological management. By shifting from reactive handling to proactive environmental management, terminal operators can minimize inventory loss, protect grain purity, and deliver consistent quality to international markets.
At STOXXNOW, we continue to upgrade our bulk storage infrastructure, integrating advanced sensor monitoring and automated aeration protocols across our domestic and export logistics networks. Investing in post-harvest preservation safeguards crop value and strengthens supply chain resilience end-to-end.
